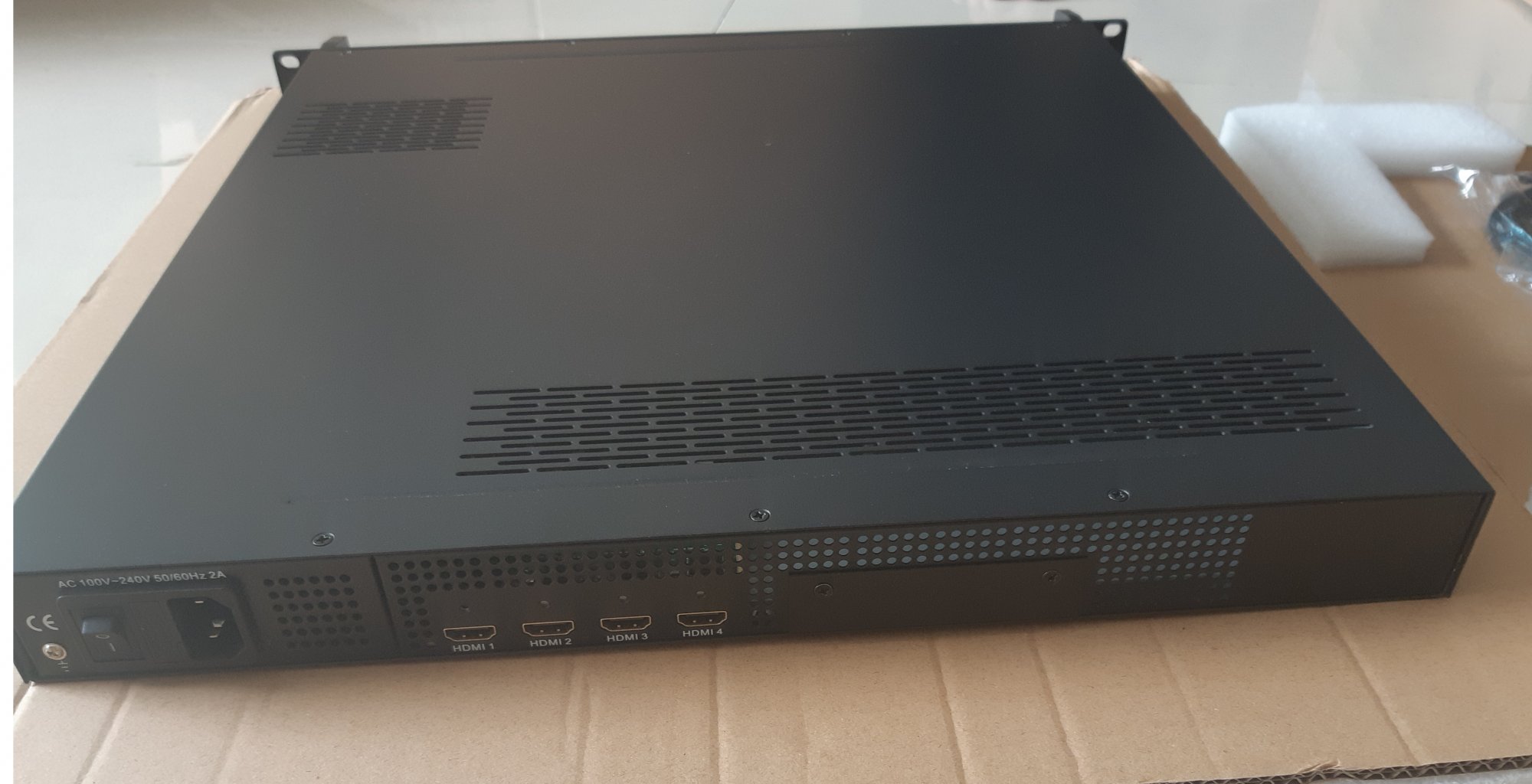

Encoder Modulator NDS3524S/NDS3528S

Input

4/8 HDMI inputs; 64/128 IP inputs

Video

Encoding

MPEG-4 AVC/H.264

Resolution

In-put

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,

Out-put

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720×576_25P,720×480_30P,

Bit-rate

1Mbps~13Mbps each channel

Rate Control

CBR/VBR

Audio

Encoding

MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

MPEG-1 Layer 2

bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC bit-rate

48/56/64/80/96/112/128 kbps

Multiplexing

Maximum PID

Remapping

180 input per channel

Function

PID remapping ( automatically or manually)

Generate PSI/ SI table automatically

Modulation

DVB-C

RF out

2/4*RF DVB-C out (2/4 carriers combined

output)

Standard

EN300 429/ITU-T J.83A/B

MER

≥40db

RF frequency

50~960MHz, 1KHz step

RF output level

-25~-1dBm (82~105 dbµV), 0.1dBm

Symbol Rate

5.0Msps~7.0Msps, 1ksps stepping

J.83A

J.83B

Constellation

16/32/64/128/256QAM

64/256 QAM

Bandwidth

8M

6M

DVB-T

Standard

EN300744

FFT mode

2K,

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥42 dB

RF frequency

50~960MHz, 1KHz step

RF out

2/4*RF COFDM DVB-T out (2/4 carriers
