4 Core FTTH ODF Terminal Box

  • Description
    4 Core - Indoor Terminal Box
  • Producer
    Simba
  • Price
    Please Contact
  • Quantity
Description

4 Core FTTH ODF Terminal Box with:

  • Small size and light weight for easy installation compact body

  • Wall mounted with mechanical protection function

  • Available for FC,SC,ST,LC adapters

  • Fiber can get in from bottom or side

  • Anti-UV, Ultra violet resistant and rainfall resistant



4 Core FTTH ODF Terminal Box

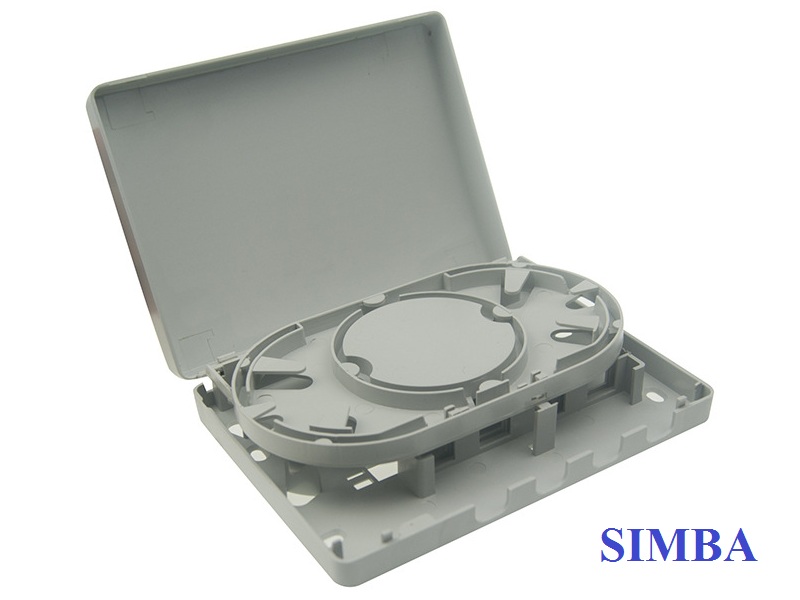

4_Core_FTTH_Terminal_Box_4_Core_FTTH_Terminal_Box_2





4_Core_FTTH_Terminal_Box_34_Core_FTTH_Terminal_Box_4

Data Sheet

Item

FTTH-SB1

FTTH-SB2

FTTH-SB3

FTTH-SB4

FTTH-SB5

FTTH-SB6

Size(HxWxD)mm

180x168x30

300x100x45

150x110x30

200x215x24

260x320x90

86x86x10

Cable diameter(mm)

Ф5~Ф10

Cable ports

2

4

2

Adapter ports

8

12

4

8

16

2

Max capacity of splice

16

12

4

16

2

Suitable Adapter

SC, LC, E2000 (APC)

SC, FC, LC, E2000 (APC)

Materials

ABS, PC or ABS+PC

EnvironmentalTemperature(℃)

-25~40

Application

4 Core FTTH ODF Terminal Box



  • Fiber to the home (FTTH)
  • Fiber to the building (FTTB)
  • Local area netwoks
  • Wide area networks
